GitOps for Kubernetes with ArgoCD
- 3 minsArgo CD is a declarative, GitOps continuous delivery tool for Kubernetes that automatically synchronizes the desired application state in a Git repository with the live state of applications in a cluster.

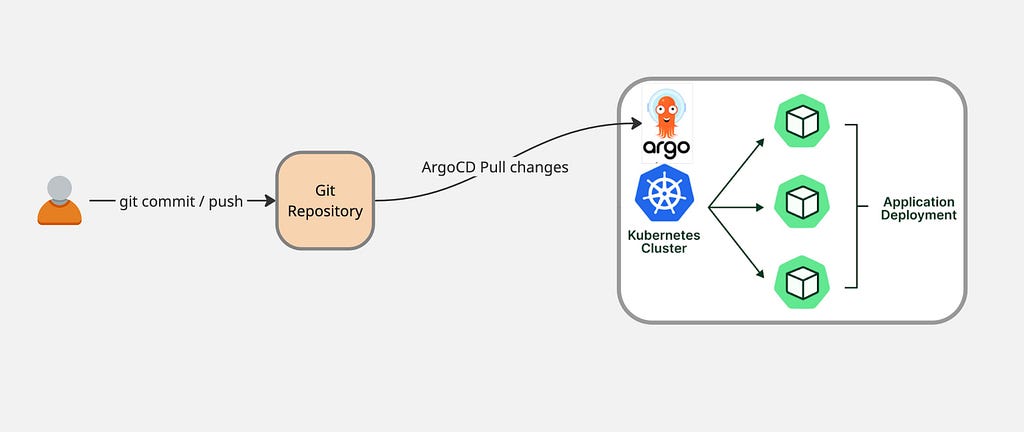

GitOps practices in delivery pipelines enable users to manage deployments through Git push operations, with ArgoCD pulling all configuration from a Git repository.
Install ArgoCD
Create the namespace:
$ kubectl create namespace argocd
Install ArgoCD on your Kubernetes cluster:
$ kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
Expose the argocd-server service to access the GUI portal:
$ kubectl get svc -n argocd
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
argocd-applicationset-controller ClusterIP 10.232.21.29 <none> 7000/TCP,8080/TCP 5h53m
argocd-dex-server ClusterIP 10.232.48.29 <none> 5556/TCP,5557/TCP,5558/TCP 5h53m
argocd-metrics ClusterIP 10.232.3.154 <none> 8082/TCP 5h53m
argocd-notifications-controller-metrics ClusterIP 10.232.42.21 <none> 9001/TCP 5h53m
argocd-redis ClusterIP 10.232.9.251 <none> 6379/TCP 5h53m
argocd-repo-server ClusterIP 10.232.8.25 <none> 8081/TCP,8084/TCP 5h53m
argocd-server LoadBalancer 10.232.5.151 10.0.74.1 80:31399/TCP,443:30373/TCP 5h53m
argocd-server-metrics ClusterIP 10.232.54.51 <none> 8083/TCP 5h53m
Access the portal at https://10.0.74.1
Fetch admin credentials:
$ kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d; echo
vFPwsLa5-ATbs1w4
Deploy Application Using ArgoCD
Create a GitHub repository “argocd-demo-app”:
$ git clone https://github.com/satishdotpatel/argocd-demo-app.git
Create directory structure:
.
├── application.yaml
└── dev
├── deployment.yaml
└── service.yaml
deployment.yaml:
apiVersion: apps/v1
kind: Deployment
metadata:
name: argocd-app-deployment
labels:
app: argocd-app
spec:
replicas: 10
selector:
matchLabels:
app: argocd-app
template:
metadata:
labels:
app: argocd-app
spec:
containers:
- name: argocd-app-container
image: nginx:latest
ports:
- containerPort: 80
service.yaml:
apiVersion: v1
kind: Service
metadata:
name: argocd-app-service
spec:
selector:
app: argocd-app
ports:
- protocol: TCP
port: 80
targetPort: 80
type: LoadBalancer
application.yaml:
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
name: myapp-argo-application
namespace: argocd
spec:
project: default
source:
repoURL: https://github.com/satishdotpatel/argocd-demo-app.git
targetRevision: HEAD
path: dev
destination:
server: https://kubernetes.default.svc
namespace: dev
syncPolicy:
syncOptions:
- CreateNamespace=true
automated:
selfHeal: true
prune: true
Deploy the application:
$ kubectl apply -f application.yaml
Testing GitOps Workflow
Modify deployment.yaml to change replicas from 10 to 3:
spec:
replicas: 3
Commit and push changes:
$ git commit -m "changing replica count from 10 to 3" deployment.yaml
[main 33e5a94] changing replica count from 10 to 3
1 file changed, 1 insertion(+), 1 deletion(-)
$ git push
Enumerating objects: 7, done.
Counting objects: 100% (7/7), done.
To https://github.com/satishdotpatel/argocd-demo-app.git
e1704ef..33e5a94 main -> main
ArgoCD checks Git changes within approximately 3 minutes (default) and automatically syncs them to the cluster.
Notes
For private Git repositories, store credentials using Kubernetes secrets:
apiVersion: v1
kind: Secret
metadata:
name: my-private-repo-creds
namespace: argocd
labels:
argocd.argoproj.io/secret-type: repository
stringData:
url: https://github.com/satishdotpatel/argocd-demo-app.git
username: "satish.patel"
password: "your-token-here"
Apply the secret:
$ kubectl apply -f my-private-repo-creds.yaml
ArgoCD will automatically fetch username and password from the Kubernetes secret for authentication.
