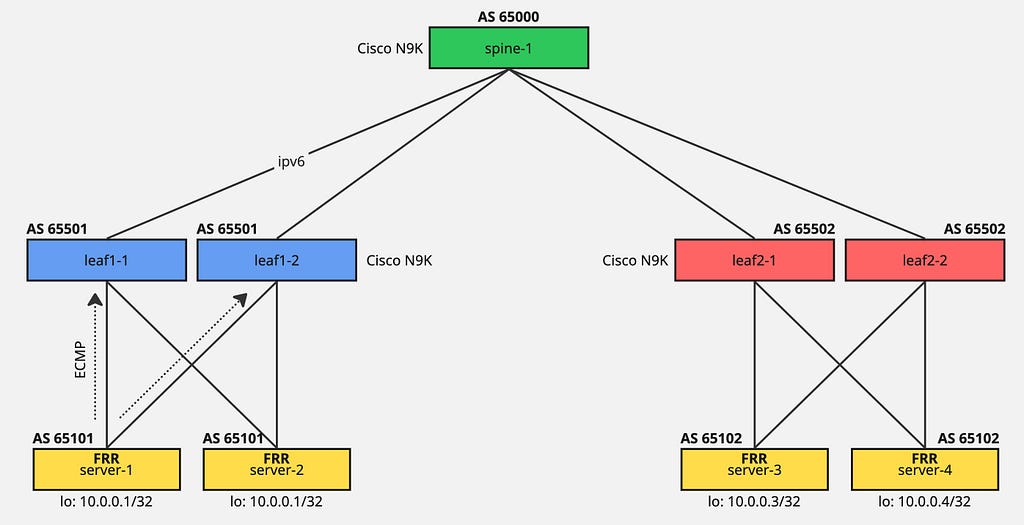

Build Layer 3 Datacenter using BGP

Thursday. November 20, 2025 - 9 mins

A Layer-3 (L3) data center using FRR refers to a data center design where routing is done end-to-end (or at least between ToR / leaf switches and hosts) at layer 3, instead of relying heavily on L2 (VLANs) or overlays.

Motivation

Why reconsider traditional L2-based datacenter designs?

VLAN limitations: scalability constraints (only ~4,000+ VLANs)
Complexity and fragility of L2: spanning tree, broadcast domains, loop risks with larger risk domains
Overlay networks (VXLAN) introduce additional overheads and complexity while still requiring VTEPs, multicast, and encapsulation overhead

Why Use BGP for L3 in a Data Center

BGP scales very well in large fabrics because it doesn’t flood link-state updates like IGPs do
With BGP unnumbered, you can peer using IPv6 link-local addresses, reducing the need for many IPv4 assignments on point-to-point links
BGP avoids many broadcast/flooding issues of L2, with reliable loop prevention via AS path
In pure L3-based design, servers/hosts peer via BGP to each leaf or routing node, so redundancy relies on L3 routing + ECMP rather than L2 aggregation

Scope

This article uses FRR software. FRR is a fully featured, high performance, free software IP routing suite. It implements all standard routing protocols such as BGP, RIP, OSPF, IS-IS and more.

IPv6 link-local addresses are used for BGP peering to simplify automation and configuration.

Setup

Install FRR on Ubuntu 22.04:

$ apt install frr

Enable BGP daemon by setting bgpd=yes in /etc/frr/daemons:

bgpd=yes

$ systemctl start frr

Add 10.0.0.X IP address on loopback interface. For additional interface IPs, create a dummy interface:

$ ip link add rep type dummy
$ ip link set rep up

FRR Configuration on Hosts

The allowas-in BGP feature allows a router to accept routes even if its own AS number appears in the AS_PATH of those routes.

server-1 configuration:

frr version 8.1
frr defaults traditional
hostname server-1
log syslog informational
no ipv6 forwarding
service integrated-vtysh-config
!
interface ens2
 no ipv6 nd suppress-ra
exit
!
interface ens3
 no ipv6 nd suppress-ra
exit
!
interface lo
 ip address 10.0.0.1/32
exit
!
interface rep
 ip address 20.0.0.1/32
exit
!
router bgp 65101
 bgp router-id 10.0.0.1
 no bgp ebgp-requires-policy
 neighbor ens2 interface remote-as 65501
 neighbor ens3 interface remote-as 65501
 !
 address-family ipv4 unicast
  redistribute connected
  neighbor ens2 allowas-in
  neighbor ens3 allowas-in
 exit-address-family
exit
!

server-2 configuration:

frr version 8.1
frr defaults traditional
hostname server-2
log syslog informational
no ipv6 forwarding
service integrated-vtysh-config
!
interface ens2
 no ipv6 nd suppress-ra
exit
!
interface ens3
 no ipv6 nd suppress-ra
exit
!
interface lo
 ip address 10.0.0.2/32
exit
!
interface rep
 ip address 20.0.0.2/32
exit
!
router bgp 65101
 bgp router-id 10.0.0.2
 no bgp ebgp-requires-policy
 neighbor ens2 interface remote-as 65501
 neighbor ens3 interface remote-as 65501
 !
 address-family ipv4 unicast
  redistribute connected
  neighbor ens2 allowas-in
  neighbor ens3 allowas-in
 exit-address-family
exit
!

server-3 configuration:

frr version 8.1
frr defaults traditional
hostname server-3
log syslog informational
no ipv6 forwarding
service integrated-vtysh-config
!
interface ens2
 no ipv6 nd suppress-ra
exit
!
interface ens3
 no ipv6 nd suppress-ra
exit
!
interface lo
 ip address 10.0.0.3/32
exit
!
interface rep
 ip address 20.0.0.3/32
exit
!
router bgp 65102
 bgp router-id 10.0.0.3
 no bgp ebgp-requires-policy
 neighbor ens2 interface remote-as 65502
 neighbor ens3 interface remote-as 65502
 !
 address-family ipv4 unicast
  redistribute connected
  neighbor ens2 allowas-in
  neighbor ens3 allowas-in
 exit-address-family
exit
!

Spine Configuration

Currently using a single spine (production environments require multiple with different BGP ASNs):

interface Ethernet1/1
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface Ethernet1/2
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface Ethernet1/3
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface Ethernet1/4
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface loopback0
  ip address 192.168.0.1/32

route-map REDIR-CONN permit 10
  match interface loopback0
  set metric 20

router bgp 65500
  router-id 192.168.0.1
  address-family ipv4 unicast
    redistribute direct route-map REDIR-CONN
  neighbor Ethernet1/1
    remote-as 65501
    description ### eBGP peer to leaf1-1 ###
    address-family ipv4 unicast
  neighbor Ethernet1/2
    remote-as 65501
    description ### eBGP peer to leaf1-2 ###
    address-family ipv4 unicast
  neighbor Ethernet1/3
    remote-as 65502
    description ### eBGP peer to leaf2-1 ###
    address-family ipv4 unicast
  neighbor Ethernet1/4
    remote-as 65502
    description ### eBGP peer to leaf2-1 ###
    address-family ipv4 unicast

Leaf Configuration

Each leaf has similar configuration except for different AS numbers for peering.

The disable-peer-as-check feature normally refuses to advertise a prefix to an eBGP peer if that peer’s AS is already the last AS in the AS-PATH, to prevent simple loop conditions. ip forward allows routing IPv4 traffic over IPv6 next-hop addresses (RFC 5549).

leaf1-1 configuration:

interface Ethernet1/1
  description ### Link to server-1 ###
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface Ethernet1/2
  description ### Link to server-2 ###
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface Ethernet1/3
  description ### Link to spine-1 ###
  no switchport
  ip forward
  ipv6 address use-link-local-only
  no shutdown

interface loopback0
  ip address 192.168.1.1/32

route-map REDIR-CONN permit 10
  match interface loopback0
  set metric 20

router bgp 65501
  router-id 192.168.1.1
  address-family ipv4 unicast
    redistribute direct route-map REDIR-CONN
  neighbor Ethernet1/1
    remote-as 65101
    description ### eBGP peer to server-1 ###
    timers 5 15
    address-family ipv4 unicast
      disable-peer-as-check
  neighbor Ethernet1/2
    remote-as 65101
    description ### eBGP peer to server-2 ###
    timers 5 15
    address-family ipv4 unicast
      disable-peer-as-check
  neighbor Ethernet1/3
    remote-as 65500
    description ### eBGP peer to spine-1 ###
    address-family ipv4 unicast

leaf1-2 configuration:

router bgp 65501
  router-id 192.168.1.2
  address-family ipv4 unicast
    redistribute direct route-map REDIR-CONN
  neighbor Ethernet1/1
    remote-as 65101
    description ### eBGP peer to server-1 ###
    timers 5 15
    address-family ipv4 unicast
      disable-peer-as-check
  neighbor Ethernet1/2
    remote-as 65101
    description ### eBGP peer to server-2 ###
    timers 5 15
    address-family ipv4 unicast
      disable-peer-as-check
  neighbor Ethernet1/3
    remote-as 65500
    description ### eBGP peer to spine-1 ###
    address-family ipv4 unicast

Validation

Check BGP peering using vtysh:

root@server-1:~# vtysh

server-1# show ip bgp summary

IPv4 Unicast Summary (VRF default):
BGP router identifier 10.0.0.1, local AS number 65101 vrf-id 0
BGP table version 50
RIB entries 21, using 3864 bytes of memory
Peers 2, using 1446 KiB of memory

Neighbor        V         AS   MsgRcvd   MsgSent   TblVer  InQ OutQ  Up/Down State/PfxRcd   PfxSnt Desc
ens2            4      65501     14418     14429        0    0    0 04:25:01            8       11 N/A
ens3            4      65501     12155     12163        0    0    0 16:51:43            8       11 N/A

Total number of neighbors 2

Check BGP routes (showing dual PATH for each destination providing ECMP and link redundancy):

server-1# show ip bgp
BGP table version is 50, local router ID is 10.0.0.1, vrf id 0
Default local pref 100, local AS 65101
Status codes:  s suppressed, d damped, h history, * valid, > best, = multipath,
               i internal, r RIB-failure, S Stale, R Removed
Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
Origin codes:  i - IGP, e - EGP, ? - incomplete

   Network          Next Hop            Metric LocPrf Weight Path
*> 10.0.0.1/32      0.0.0.0                  0         32768 ?
*= 10.0.0.2/32      ens3                                   0 65501 65101 ?
*>                  ens2                                   0 65501 65101 ?
*= 10.0.0.3/32      ens2                                   0 65501 65500 65502 65102 ?
*>                  ens3                                   0 65501 65500 65502 65102 ?
*= 10.0.0.4/32      ens2                                   0 65501 65500 65502 65102 ?
*>                  ens3                                   0 65501 65500 65502 65102 ?
*> 20.0.0.1/32      0.0.0.0                  0         32768 ?
*= 20.0.0.2/32      ens3                                   0 65501 65101 ?
*>                  ens2                                   0 65501 65101 ?
*= 20.0.0.3/32      ens2                                   0 65501 65500 65502 65102 ?
*>                  ens3                                   0 65501 65500 65502 65102 ?
*= 192.168.0.1/32   ens2                                   0 65501 65500 ?
*>                  ens3                                   0 65501 65500 ?
*> 192.168.1.1/32   ens2                    20             0 65501 ?
*> 192.168.1.2/32   ens3                    20             0 65501 ?
*> 192.168.255.0/24 ens2                                   0 65501 65101 ?
*=                  ens3                                   0 65501 65101 ?

Displayed  11 routes and 18 total paths

When leaves and spines run different ASNs, every route that traverses from a leaf to a spine (or across spines) will show a clear AS-path. This makes routing easier to trace, since the AS path reflects the actual topology layers.

server-1# show ip bgp 10.0.0.3
BGP routing table entry for 10.0.0.3/32, version 36
Paths: (2 available, best #2, table default)
  Advertised to non peer-group peers:
  ens2 ens3
  65501 65500 65502 65102

Next-hop address is IPv6 address of local-link address:

server-1# show ip route
Codes: K - kernel route, C - connected, S - static, R - RIP,
       O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
       T - Table, v - VNC, V - VNC-Direct, A - Babel, F - PBR,
       f - OpenFabric,
       > - selected route, * - FIB route, q - queued, r - rejected, b - backup
       t - trapped, o - offload failure

C>* 10.0.0.1/32 is directly connected, lo, 20:44:04
B>* 10.0.0.2/32 [20/0] via fe80::5009:8bff:fea9:1b08, ens2, weight 1, 04:55:44
  *                    via fe80::500e:f2ff:feff:1b08, ens3, weight 1, 04:55:44
B>* 10.0.0.3/32 [20/0] via fe80::5009:8bff:fea9:1b08, ens2, weight 1, 05:05:48
  *                    via fe80::500e:f2ff:feff:1b08, ens3, weight 1, 05:05:48

Running tcpdump on server-3 shows how packets use ECMP (Equal-Cost Multi-Path) routing:

root@server-3:~# tcpdump -i any icmp -n
tcpdump: data link type LINUX_SLL2
listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
20:27:12.027359 ens2  In  IP 10.0.0.1 > 10.0.0.3: ICMP echo request, id 8, seq 1, length 64
20:27:12.027449 ens3  Out IP 10.0.0.3 > 10.0.0.1: ICMP echo reply, id 8, seq 1, length 64
20:27:13.030259 ens2  In  IP 10.0.0.1 > 10.0.0.3: ICMP echo request, id 8, seq 2, length 64
20:27:13.030348 ens3  Out IP 10.0.0.3 > 10.0.0.1: ICMP echo reply, id 8, seq 2, length 64

In the next blog post, I will deploy Ceph storage on this fabric for POC.
